l_radial_d29_8mm_p28_80mm_murata_1400series.step

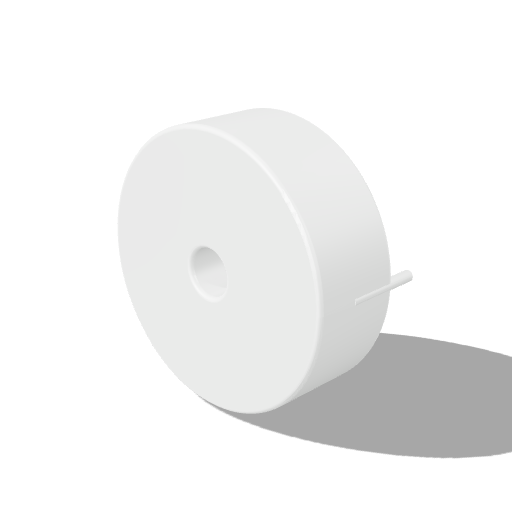

L Radial D29.8mm P28.80mm Murata 1400series

Skills Contribute

passiveinductorferritethrough-hole

Loading L Radial D29.8mm P28.80mm Murata 1400series 3D viewer

Summary

Through-hole inductor footprint model, L Radial D29.8mm P28.80mm Murata 1400series.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Radial_D29.8mm_P28.80mm_Murata_1400series.step
Model: L_Radial_D29.8mm_P28.80mm_Murata_1400series
Mounting Style: through-hole
Pitch mm: 28.8
