l_radial_d24_4mm_p23_70mm_murata_1400series.step

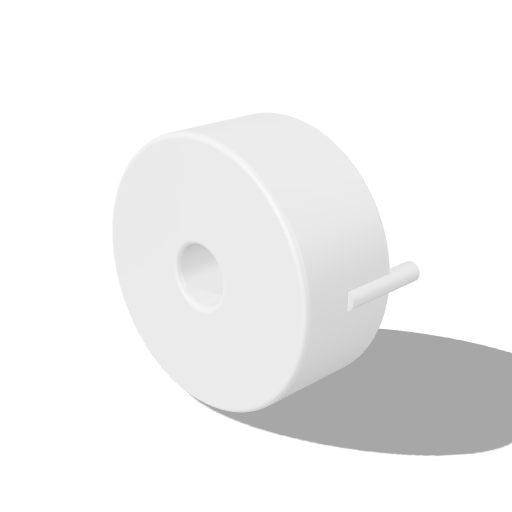

L Radial D24.4mm P23.70mm Murata 1400series

Skills Contribute

passiveinductorferritethrough-hole

Loading L Radial D24.4mm P23.70mm Murata 1400series 3D viewer

Summary

Through-hole inductor footprint model, L Radial D24.4mm P23.70mm Murata 1400series.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Radial_D24.4mm_P23.70mm_Murata_1400series.step
Model: L_Radial_D24.4mm_P23.70mm_Murata_1400series
Mounting Style: through-hole
Pitch mm: 23.7
