l_radial_d10_0mm_p5_00mm_neosid_sd12k_style3.step

L Radial D10.0mm P5.00mm Neosid SD12k style3

Skills Contribute

passiveinductorferritethrough-hole

Loading L Radial D10.0mm P5.00mm Neosid SD12k style3 3D viewer

Summary

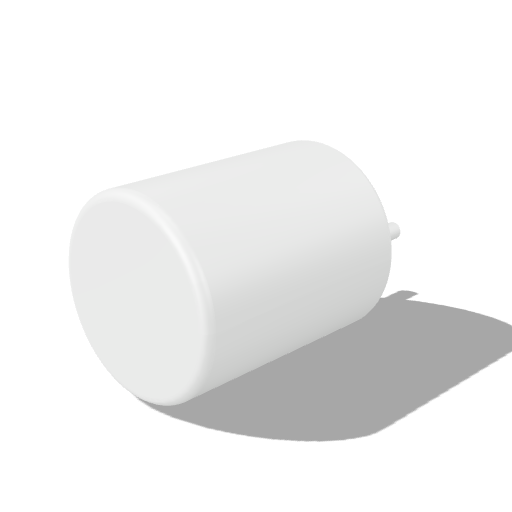

Through-hole inductor footprint model, L Radial D10.0mm P5.00mm Neosid SD12k style3.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Radial_D10.0mm_P5.00mm_Neosid_SD12k_style3.step
Model: L_Radial_D10.0mm_P5.00mm_Neosid_SD12k_style3
Mounting Style: through-hole
Pitch mm: 5
