l_commonmode_vertical_l22mm_w20mm_px10_5mm_py13_5mm_prodtech_pduuat16.step

L Common Mode Vertical L22mm W20mm Px10.5mm Py13.5mm Prod Tech PDUUAT16

Skills Contribute

passiveinductorferritethrough-hole

Loading L Common Mode Vertical L22mm W20mm Px10.5mm Py13.5mm Prod Tech PDUUAT16 3D viewer

Summary

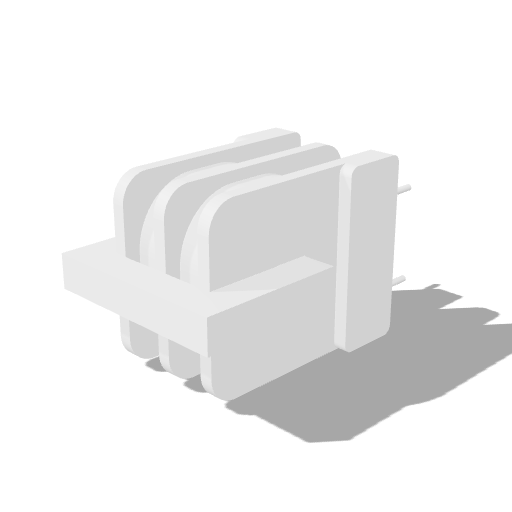

Through-hole inductor footprint model, L Common Mode Vertical L22mm W20mm Px10.5mm Py13.5mm Prod Tech PDUUAT16.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_CommonMode_Vertical_L22mm_W20mm_Px10.5mm_Py13.5mm_ProdTech_PDUUAT16.step
Model: L_CommonMode_Vertical_L22mm_W20mm_Px10.5mm_Py13.5mm_ProdTech_PDUUAT16
Mounting Style: through-hole
