l_axial_l9_5mm_d4_0mm_p5_08mm_vertical_fastron_smcc.step

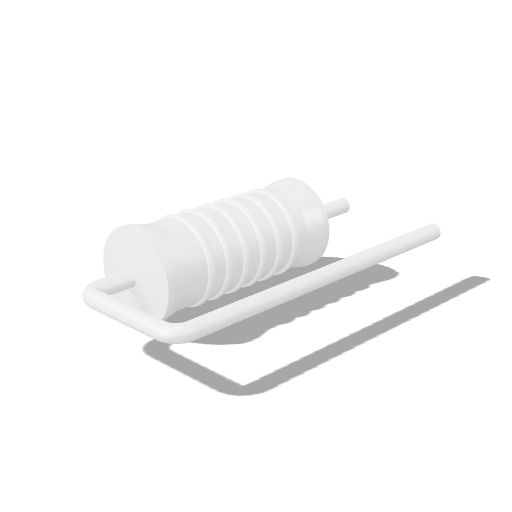

L Axial L9.5mm D4.0mm P5.08mm Vertical Fastron SMCC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L9.5mm D4.0mm P5.08mm Vertical Fastron SMCC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L9.5mm D4.0mm P5.08mm Vertical Fastron SMCC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L9.5mm_D4.0mm_P5.08mm_Vertical_Fastron_SMCC.step
Model: L_Axial_L9.5mm_D4.0mm_P5.08mm_Vertical_Fastron_SMCC
Mounting Style: through-hole
Pitch mm: 5.08
