l_axial_l7_0mm_d3_3mm_p5_08mm_vertical_fastron_micc.step

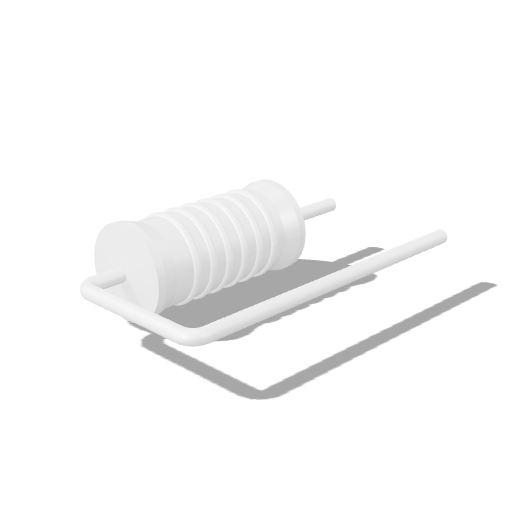

L Axial L7.0mm D3.3mm P5.08mm Vertical Fastron MICC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L7.0mm D3.3mm P5.08mm Vertical Fastron MICC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L7.0mm D3.3mm P5.08mm Vertical Fastron MICC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L7.0mm_D3.3mm_P5.08mm_Vertical_Fastron_MICC.step
Model: L_Axial_L7.0mm_D3.3mm_P5.08mm_Vertical_Fastron_MICC
Mounting Style: through-hole
Pitch mm: 5.08
