l_axial_l6_6mm_d2_7mm_p10_16mm_horizontal_vishay_im_2.step

L Axial L6.6mm D2.7mm P10.16mm Horizontal Vishay IM-2

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L6.6mm D2.7mm P10.16mm Horizontal Vishay IM-2 3D viewer

Summary

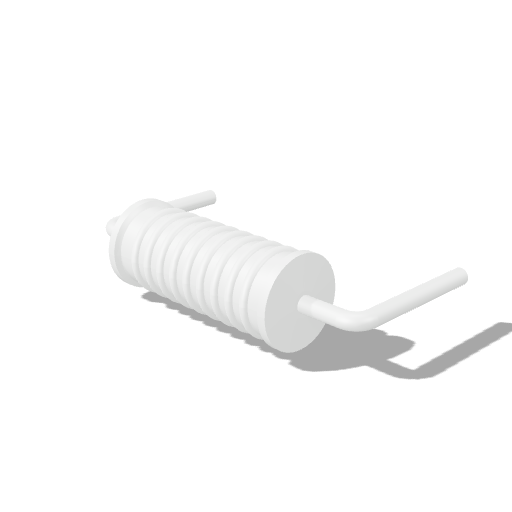

Through-hole inductor footprint model, L Axial L6.6mm D2.7mm P10.16mm Horizontal Vishay IM-2.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L6.6mm_D2.7mm_P10.16mm_Horizontal_Vishay_IM-2.step
Model: L_Axial_L6.6mm_D2.7mm_P10.16mm_Horizontal_Vishay_IM-2
Mounting Style: through-hole
Pitch mm: 10.16
