l_axial_l5_3mm_d2_2mm_p7_62mm_horizontal_vishay_im_1.step

L Axial L5.3mm D2.2mm P7.62mm Horizontal Vishay IM-1

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L5.3mm D2.2mm P7.62mm Horizontal Vishay IM-1 3D viewer

Summary

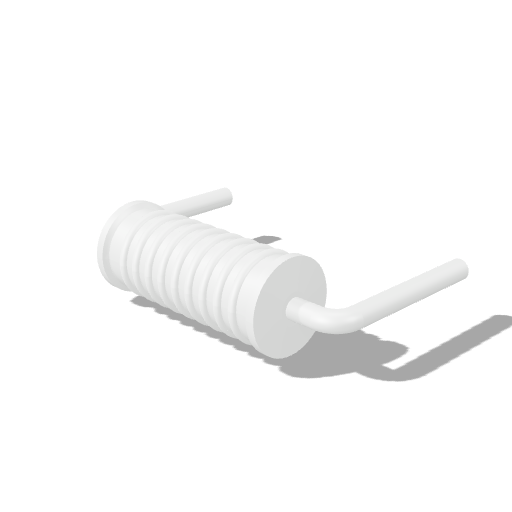

Through-hole inductor footprint model, L Axial L5.3mm D2.2mm P7.62mm Horizontal Vishay IM-1.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L5.3mm_D2.2mm_P7.62mm_Horizontal_Vishay_IM-1.step
Model: L_Axial_L5.3mm_D2.2mm_P7.62mm_Horizontal_Vishay_IM-1
Mounting Style: through-hole
Pitch mm: 7.62
