l_axial_l26_0mm_d10_0mm_p7_62mm_vertical_fastron_77a.step

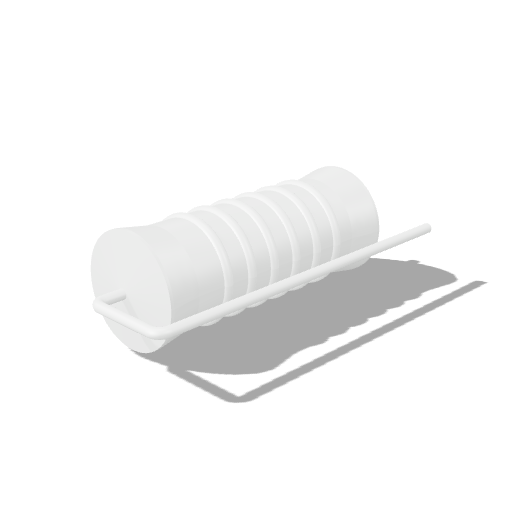

L Axial L26.0mm D10.0mm P7.62mm Vertical Fastron 77 A

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L26.0mm D10.0mm P7.62mm Vertical Fastron 77 A 3D viewer

Summary

Through-hole inductor footprint model, L Axial L26.0mm D10.0mm P7.62mm Vertical Fastron 77 A.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L26.0mm_D10.0mm_P7.62mm_Vertical_Fastron_77A.step
Model: L_Axial_L26.0mm_D10.0mm_P7.62mm_Vertical_Fastron_77A
Mounting Style: through-hole
Pitch mm: 7.62
