l_axial_l24_0mm_d7_5mm_p7_62mm_vertical_fastron_mesc.step

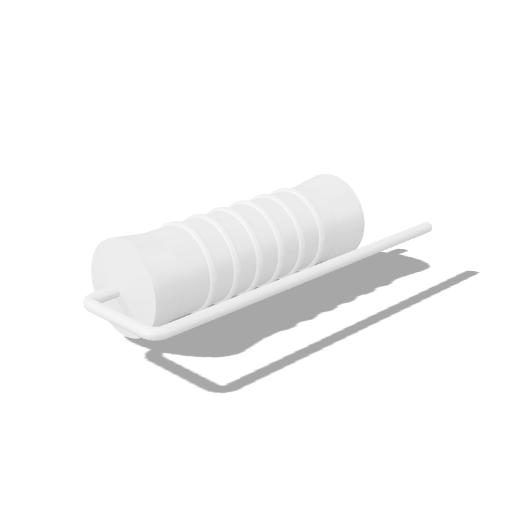

L Axial L24.0mm D7.5mm P7.62mm Vertical Fastron MESC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L24.0mm D7.5mm P7.62mm Vertical Fastron MESC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L24.0mm D7.5mm P7.62mm Vertical Fastron MESC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L24.0mm_D7.5mm_P7.62mm_Vertical_Fastron_MESC.step
Model: L_Axial_L24.0mm_D7.5mm_P7.62mm_Vertical_Fastron_MESC
Mounting Style: through-hole
Pitch mm: 7.62
