l_axial_l20_0mm_d8_0mm_p25_40mm_horizontal.step

L Axial L20.0mm D8.0mm P25.40mm Horizontal

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L20.0mm D8.0mm P25.40mm Horizontal 3D viewer

Summary

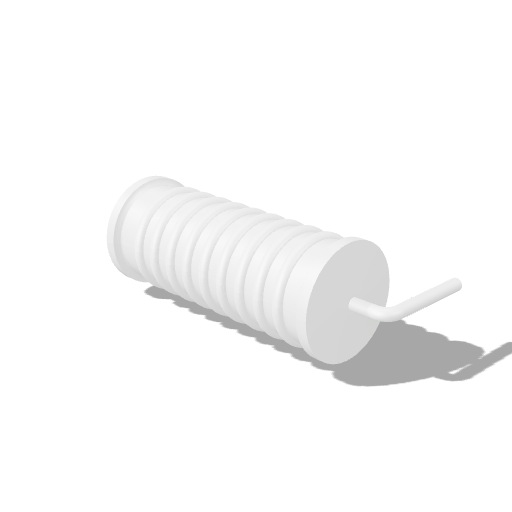

Through-hole inductor footprint model, L Axial L20.0mm D8.0mm P25.40mm Horizontal.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L20.0mm_D8.0mm_P25.40mm_Horizontal.step
Model: L_Axial_L20.0mm_D8.0mm_P25.40mm_Horizontal
Mounting Style: through-hole
Pitch mm: 25.4
