l_axial_l17_5mm_d12_0mm_p7_62mm_vertical_vishay_im_10_46.step

L Axial L17.5mm D12.0mm P7.62mm Vertical Vishay IM-10-46

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L17.5mm D12.0mm P7.62mm Vertical Vishay IM-10-46 3D viewer

Summary

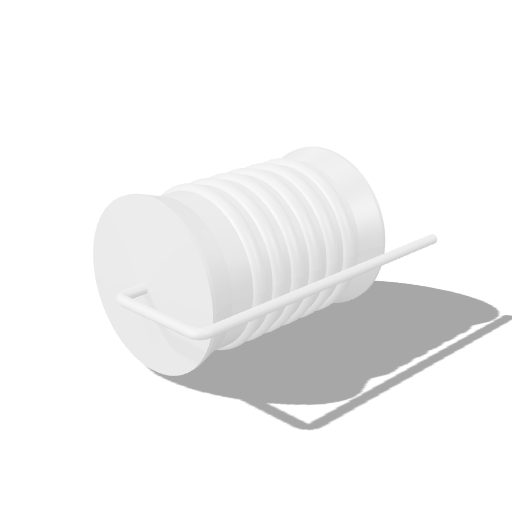

Through-hole inductor footprint model, L Axial L17.5mm D12.0mm P7.62mm Vertical Vishay IM-10-46.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L17.5mm_D12.0mm_P7.62mm_Vertical_Vishay_IM-10-46.step
Model: L_Axial_L17.5mm_D12.0mm_P7.62mm_Vertical_Vishay_IM-10-46
Mounting Style: through-hole
Pitch mm: 7.62
