l_axial_l16_0mm_d9_5mm_p5_08mm_vertical_vishay_im_10_37.step

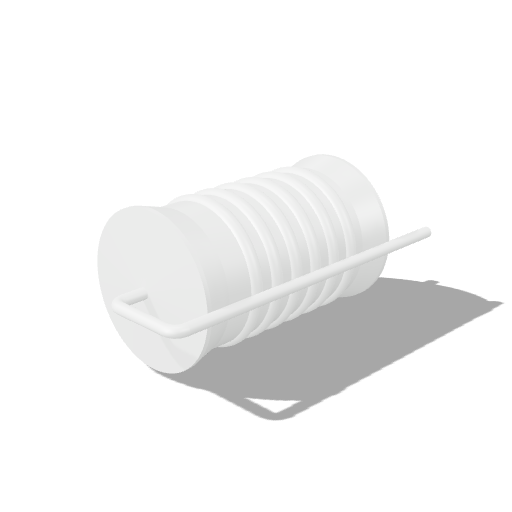

L Axial L16.0mm D9.5mm P5.08mm Vertical Vishay IM-10-37

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L16.0mm D9.5mm P5.08mm Vertical Vishay IM-10-37 3D viewer

Summary

Through-hole inductor footprint model, L Axial L16.0mm D9.5mm P5.08mm Vertical Vishay IM-10-37.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L16.0mm_D9.5mm_P5.08mm_Vertical_Vishay_IM-10-37.step
Model: L_Axial_L16.0mm_D9.5mm_P5.08mm_Vertical_Vishay_IM-10-37
Mounting Style: through-hole
Pitch mm: 5.08
