l_axial_l16_0mm_d6_3mm_p7_62mm_vertical_fastron_vhbcc.step

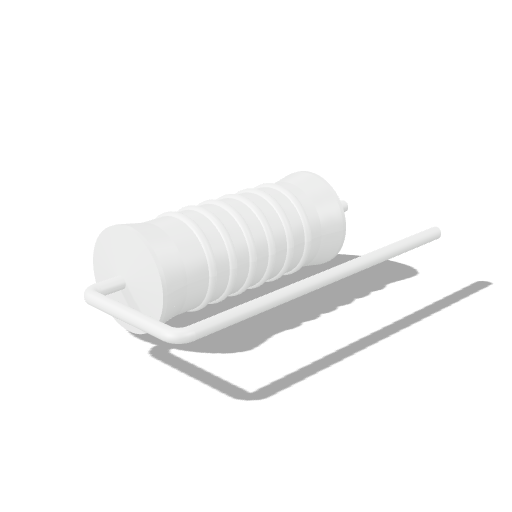

L Axial L16.0mm D6.3mm P7.62mm Vertical Fastron VHBCC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L16.0mm D6.3mm P7.62mm Vertical Fastron VHBCC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L16.0mm D6.3mm P7.62mm Vertical Fastron VHBCC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L16.0mm_D6.3mm_P7.62mm_Vertical_Fastron_VHBCC.step
Model: L_Axial_L16.0mm_D6.3mm_P7.62mm_Vertical_Fastron_VHBCC
Mounting Style: through-hole
Pitch mm: 7.62
