l_axial_l14_0mm_d4_5mm_p5_08mm_vertical_fastron_lacc.step

L Axial L14.0mm D4.5mm P5.08mm Vertical Fastron LACC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L14.0mm D4.5mm P5.08mm Vertical Fastron LACC 3D viewer

Summary

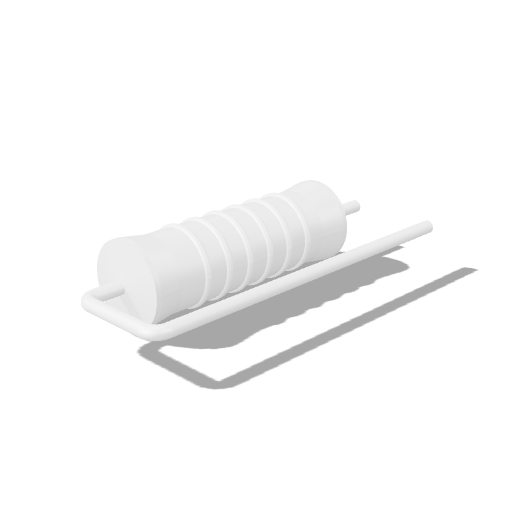

Through-hole inductor footprint model, L Axial L14.0mm D4.5mm P5.08mm Vertical Fastron LACC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L14.0mm_D4.5mm_P5.08mm_Vertical_Fastron_LACC.step
Model: L_Axial_L14.0mm_D4.5mm_P5.08mm_Vertical_Fastron_LACC
Mounting Style: through-hole
Pitch mm: 5.08
