l_axial_l14_0mm_d4_5mm_p15_24mm_horizontal_fastron_lacc.step

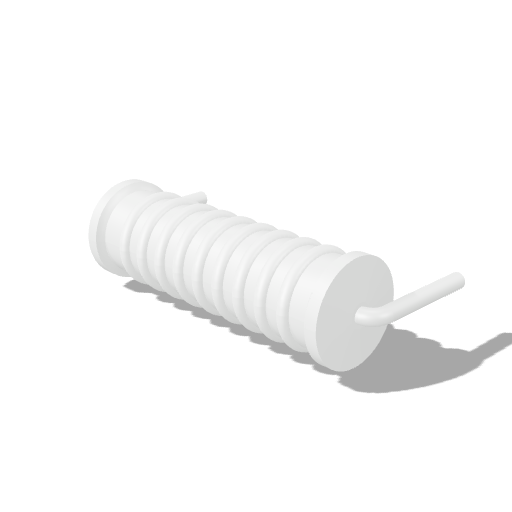

L Axial L14.0mm D4.5mm P15.24mm Horizontal Fastron LACC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L14.0mm D4.5mm P15.24mm Horizontal Fastron LACC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L14.0mm D4.5mm P15.24mm Horizontal Fastron LACC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L14.0mm_D4.5mm_P15.24mm_Horizontal_Fastron_LACC.step
Model: L_Axial_L14.0mm_D4.5mm_P15.24mm_Horizontal_Fastron_LACC
Mounting Style: through-hole
Pitch mm: 15.24
