l_axial_l12_8mm_d5_8mm_p7_62mm_vertical_fastron_hbcc.step

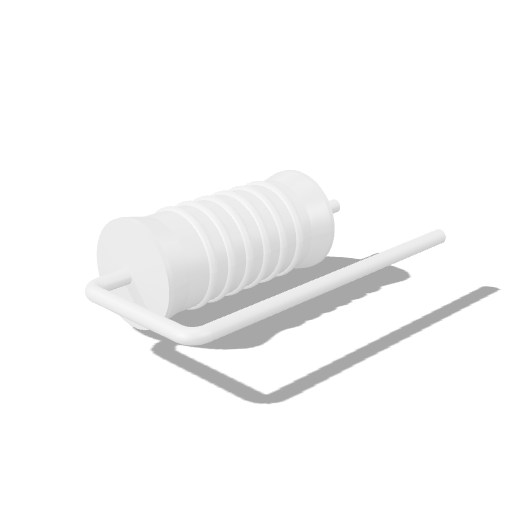

L Axial L12.8mm D5.8mm P7.62mm Vertical Fastron HBCC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L12.8mm D5.8mm P7.62mm Vertical Fastron HBCC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L12.8mm D5.8mm P7.62mm Vertical Fastron HBCC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L12.8mm_D5.8mm_P7.62mm_Vertical_Fastron_HBCC.step
Model: L_Axial_L12.8mm_D5.8mm_P7.62mm_Vertical_Fastron_HBCC
Mounting Style: through-hole
Pitch mm: 7.62
