l_axial_l12_0mm_d5_0mm_p7_62mm_vertical_fastron_misc.step

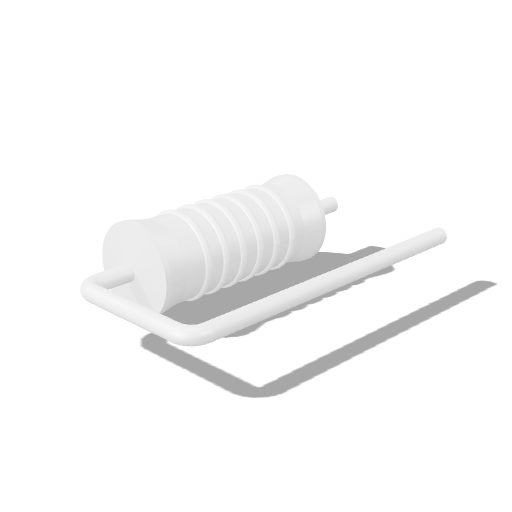

L Axial L12.0mm D5.0mm P7.62mm Vertical Fastron MISC

Skills Contribute

passiveinductorferritethrough-hole

Loading L Axial L12.0mm D5.0mm P7.62mm Vertical Fastron MISC 3D viewer

Summary

Through-hole inductor footprint model, L Axial L12.0mm D5.0mm P7.62mm Vertical Fastron MISC.

Part

Category: electronics
Family: inductor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Inductor_THT.3dshapes/L_Axial_L12.0mm_D5.0mm_P7.62mm_Vertical_Fastron_MISC.step
Model: L_Axial_L12.0mm_D5.0mm_P7.62mm_Vertical_Fastron_MISC
Mounting Style: through-hole
Pitch mm: 7.62
