iso_metric_low_head_socket_cap_screw_m5_l030_simple.step

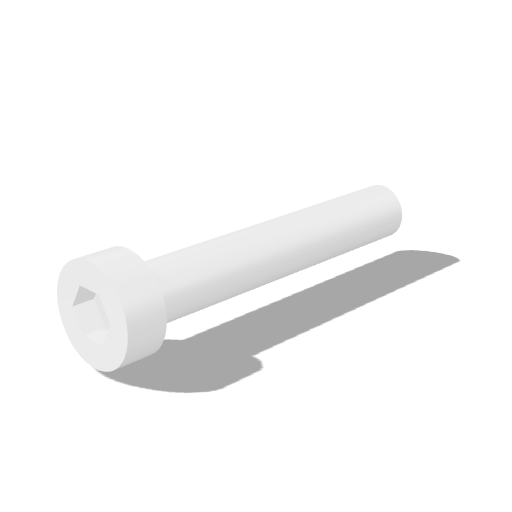

Low-head socket cap screws, M5, L=30 mm, simplified thread

Skills Contribute

screwsocket-headmetric

Loading Low-head socket cap screws, M5, L=30 mm, simplified thread 3D viewer

Summary

Low-head socket cap screw, M5, L=30 mm.

Part

Category: fastener
Family: low-head-socket-cap-screw
Standard: ISO 7380
Standard Body: ISO
Standard Number: 7380
Geometry Representation: analytic simplified
Head Diameter mm: 8.5
Head Height mm: 3.5
Hex Socket mm: 4
Length mm: 30
Major Diameter mm: 5
Thread: M5
Nominal Size: M5 x 30 mm
