iso_metric_low_head_socket_cap_screw_m2_l005_simple.step

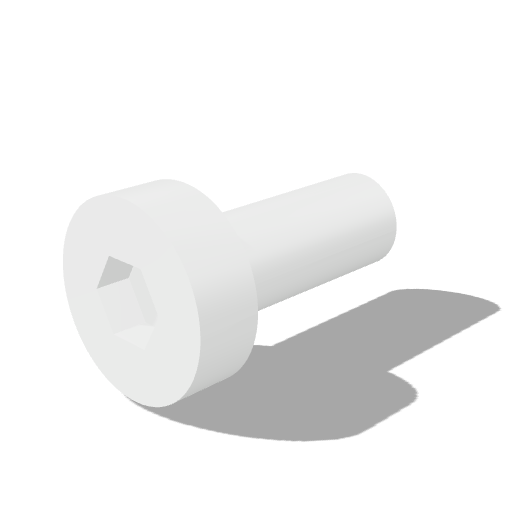

Low-head socket cap screws, M2, L=5 mm, simplified thread

Skills Contribute

screwsocket-headmetric

Loading Low-head socket cap screws, M2, L=5 mm, simplified thread 3D viewer

Summary

Low-head socket cap screw, M2, L=5 mm.

Part

Category: fastener
Family: low-head-socket-cap-screw
Standard: ISO 7380
Standard Body: ISO
Standard Number: 7380
Geometry Representation: analytic simplified
Head Diameter mm: 3.8
Head Height mm: 1.3
Hex Socket mm: 1.5
Length mm: 5
Major Diameter mm: 2
Thread: M2
Nominal Size: M2 x 5 mm
