iso7380_hex_socket_button_head_screw_m5xxx_fusion.step

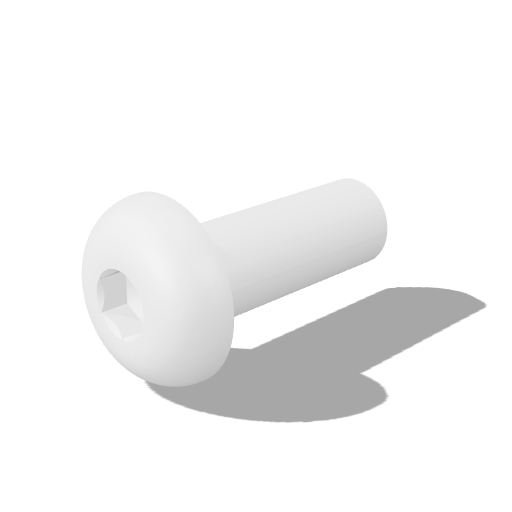

ISO 7380 ISO7380 Hex Socket Button Head Screw M5x XX-Fusion

Skills Contribute

screwmetricbutton-head

Loading ISO 7380 ISO7380 Hex Socket Button Head Screw M5x XX-Fusion 3D viewer

Summary

ISO7380 Hex Socket Button Head Screw M5x XX-Fusion.

Part

Category: fastener
Family: metric-fastener
Standard: ISO 7380
Standard Body: ISO
Standard Number: 7380
Model: ISO7380_Hex_Socket_Button_Head_Screw_M5xXX-Fusion
Thread: M5
Head Style: button-head
Drive Style: hex-socket
Geometry Note: Filename does not identify a fixed screw length
