iso10642_socket_countersunk_screw_m6x12.step

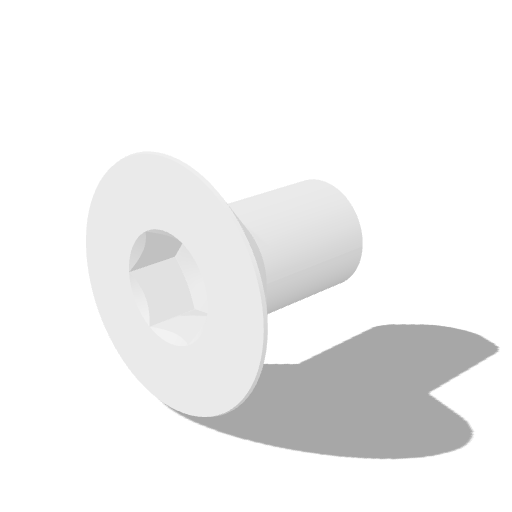

ISO 10642 hex socket countersunk screw, M6 x 12

Skills Contribute

screwcountersunksocketmetric

Loading ISO 10642 hex socket countersunk screw, M6 x 12 3D viewer

Summary

ISO 10642, countersunk screw, M6 x 12.

Part

Category: fastener
Family: countersunk-screw
Standard: ISO 10642
Standard Body: ISO
Standard Number: 10642
Thread: M6
Length mm: 12
Nominal Size: M6 x 12
Head Style: countersunk
Drive Style: hex-socket
