htssop_16_1ep_4_4x5mm_p0_65mm_ep3_4x5mm_mask2_66x2_46mm.step

HTSSOP-16-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask2.66x2.46mm

Skills Contribute

semiconductorpackagesmd

Loading HTSSOP-16-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask2.66x2.46mm 3D viewer

Summary

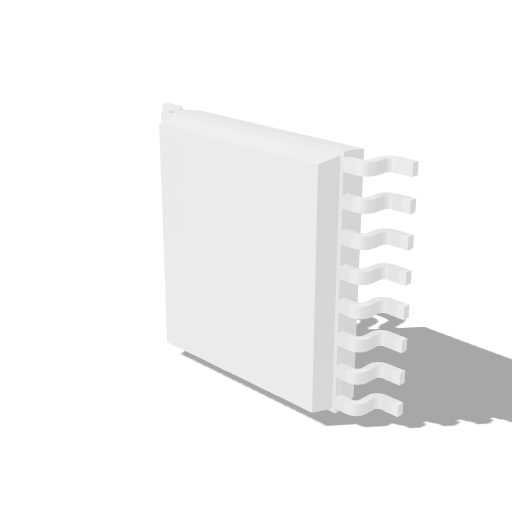

Package SO semiconductor package model, HTSSOP-16-1 EP 4.4x5mm P0.65mm EP3.4x5mm Mask2.66x2.46mm.

Part

Category: electronics
Family: package-so
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Package_SO.3dshapes/HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.66x2.46mm.step
Model: HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.66x2.46mm
Pitch mm: 0.65
