hirose_fh26_29s_0_3shw_2rows_29pins_1mp_p0_60mm_horizontal.step

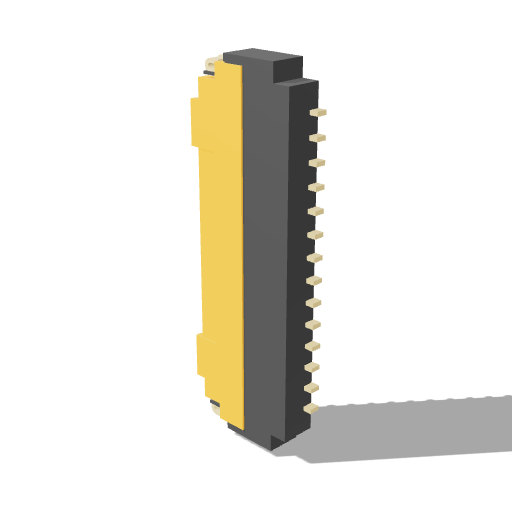

Hirose FH26-29 S-0.3 SHW 2 Rows-29 Pins-1 MP P0.60mm Horizontal

Skills Contribute

connectorffc-fpcboard-to-board

Loading Hirose FH26-29 S-0.3 SHW 2 Rows-29 Pins-1 MP P0.60mm Horizontal 3D viewer

Summary

Connector FFC-FPC connector footprint model, Hirose FH26-29 S-0.3 SHW 2 Rows-29 Pins-1 MP P0.60mm Horizontal.

Part

Category: electronics
Family: connector-ffc-fpc
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_FFC-FPC.3dshapes/Hirose_FH26-29S-0.3SHW_2Rows-29Pins-1MP_P0.60mm_Horizontal.step
Model: Hirose_FH26-29S-0.3SHW_2Rows-29Pins-1MP_P0.60mm_Horizontal
Pitch mm: 0.6
