hirose_fh12_18s_0_5sh_1x18_1mp_p0_50mm_horizontal.step

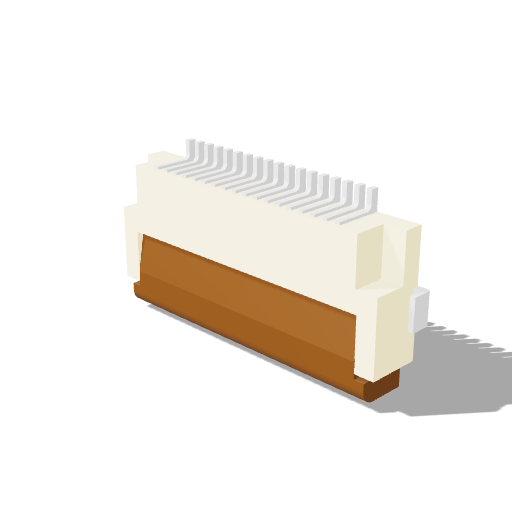

Hirose FH12-18 S-0.5 SH 1x18-1 MP P0.50mm Horizontal

Skills Contribute

connectorffc-fpcboard-to-board

Loading Hirose FH12-18 S-0.5 SH 1x18-1 MP P0.50mm Horizontal 3D viewer

Summary

Connector FFC-FPC connector footprint model, Hirose FH12-18 S-0.5 SH 1x18-1 MP P0.50mm Horizontal.

Part

Category: electronics
Family: connector-ffc-fpc
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_FFC-FPC.3dshapes/Hirose_FH12-18S-0.5SH_1x18-1MP_P0.50mm_Horizontal.step
Model: Hirose_FH12-18S-0.5SH_1x18-1MP_P0.50mm_Horizontal
Pitch mm: 0.5
