heatsink_aavid_extruded_531302b02500g_34_9x12_7mm_h63_5mm.step

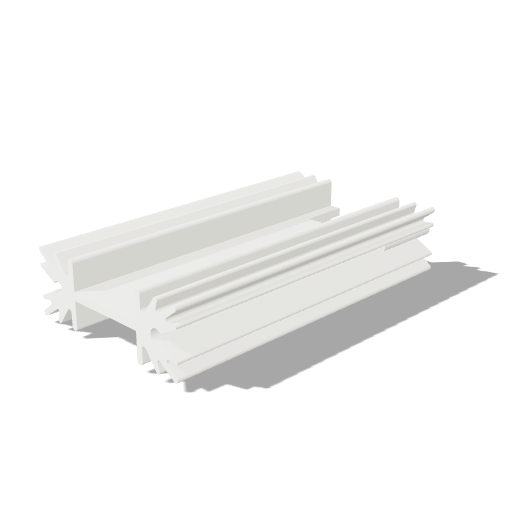

Heatsink AAVID Extruded 531302 B02500 G 34.9x12.7mm H63.5mm

Skills Contribute

heatsinkheat-transfer

Loading Heatsink AAVID Extruded 531302 B02500 G 34.9x12.7mm H63.5mm 3D viewer

Summary

Board-level heatsink footprint model, Heatsink AAVID Extruded 531302 B02500 G 34.9x12.7mm H63.5mm.

Part

Category: thermal
Family: board-heatsink
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Heatsink.3dshapes/Heatsink_AAVID_Extruded_531302B02500G_34.9x12.7mm_H63.5mm.step
Model: Heatsink_AAVID_Extruded_531302B02500G_34.9x12.7mm_H63.5mm
