dsub_9_socket_horizontal_p2_77x2_84mm_edgepinoffset9_90mm_housed_mountingholesoffset11_32mm.step

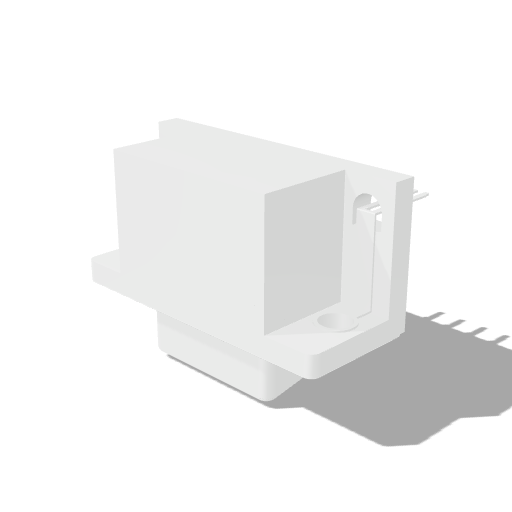

DSUB-9 Socket Horizontal P2.77x2.84mm Edge Pin Offset9.90mm Housed Mounting Holes Offset11.32mm

Skills Contribute

connectord-subexternal-io

Loading DSUB-9 Socket Horizontal P2.77x2.84mm Edge Pin Offset9.90mm Housed Mounting Holes Offset11.32mm 3D viewer

Summary

Connector D-sub connector footprint model, DSUB-9 Socket Horizontal P2.77x2.84mm Edge Pin Offset9.90mm Housed Mounting Holes Offset11.32mm.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-9_Socket_Horizontal_P2.77x2.84mm_EdgePinOffset9.90mm_Housed_MountingHolesOffset11.32mm.step
Model: DSUB-9_Socket_Horizontal_P2.77x2.84mm_EdgePinOffset9.90mm_Housed_MountingHolesOffset11.32mm
