dsub_9_pins_horizontal_p2_77x2_84mm_edgepinoffset7_70mm_housed_mountingholesoffset9_12mm.step

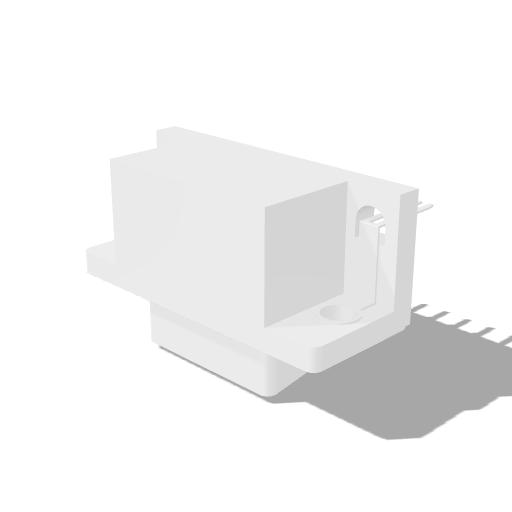

DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset7.70mm Housed Mounting Holes Offset9.12mm

Skills Contribute

connectord-subexternal-io

Loading DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset7.70mm Housed Mounting Holes Offset9.12mm 3D viewer

Summary

Connector D-sub connector footprint model, DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset7.70mm Housed Mounting Holes Offset9.12mm.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-9_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset7.70mm_Housed_MountingHolesOffset9.12mm.step
Model: DSUB-9_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset7.70mm_Housed_MountingHolesOffset9.12mm
