dsub_9_pins_horizontal_p2_77x2_84mm_edgepinoffset4_94mm_housed_mountingholesoffset4_94mm.step

DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset4.94mm Housed Mounting Holes Offset4.94mm

Skills Contribute

connectord-subexternal-io

Loading DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset4.94mm Housed Mounting Holes Offset4.94mm 3D viewer

Summary

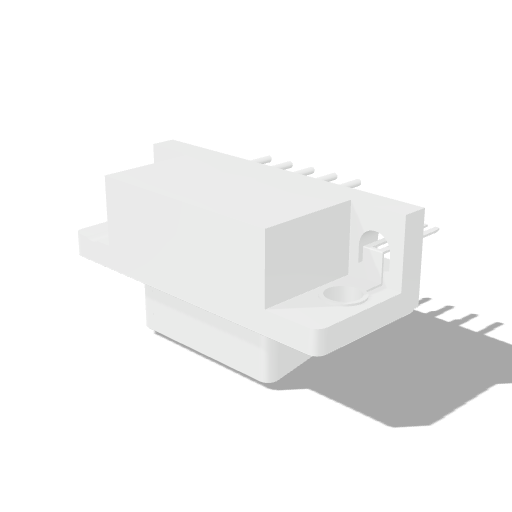

Connector D-sub connector footprint model, DSUB-9 Pins Horizontal P2.77x2.84mm Edge Pin Offset4.94mm Housed Mounting Holes Offset4.94mm.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-9_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset4.94mm_Housed_MountingHolesOffset4.94mm.step
Model: DSUB-9_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset4.94mm_Housed_MountingHolesOffset4.94mm
