dsub_9_female_horizontal_p2_77x2_84mm_edgepinoffset9_40mm.step

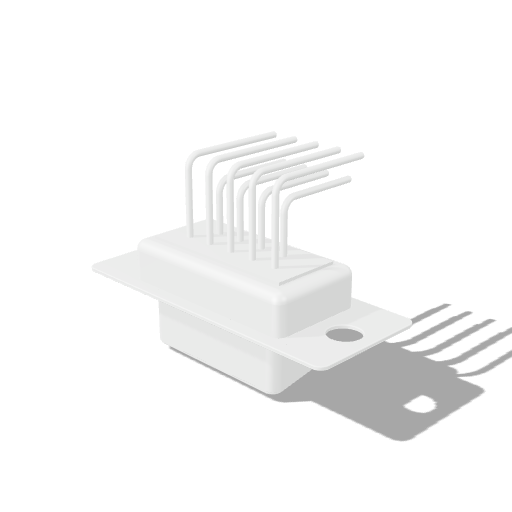

DSUB-9 Female Horizontal P2.77x2.84mm Edge Pin Offset9.40mm

Skills Contribute

connectord-subexternal-io

Loading DSUB-9 Female Horizontal P2.77x2.84mm Edge Pin Offset9.40mm 3D viewer

Summary

D-sub connector, DSUB-9 Female Horizontal P2.77x2.84mm Edge Pin Offset9.40mm.

Part

Category: electronics
Family: connector-dsub
Model: DSUB-9_Female_Horizontal_P2.77x2.84mm_EdgePinOffset9.40mm
Rows: 77
Positions: 2
Pins: 154
