dsub_37_socket_horizontal_p2_77x2_54mm_edgepinoffset9_40mm.step

DSUB-37 Socket Horizontal P2.77x2.54mm Edge Pin Offset9.40mm

Skills Contribute

connectord-subexternal-io

Loading DSUB-37 Socket Horizontal P2.77x2.54mm Edge Pin Offset9.40mm 3D viewer

Summary

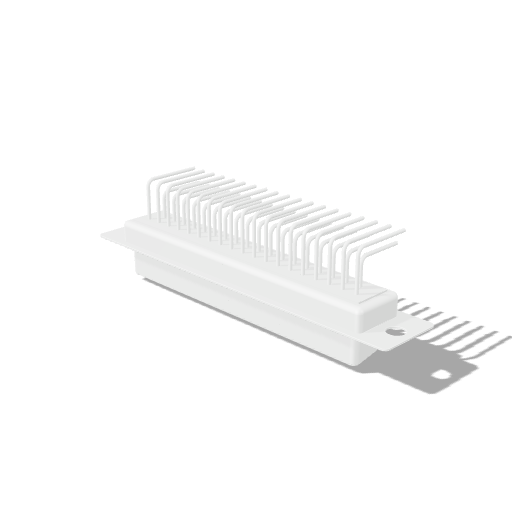

Connector D-sub connector footprint model, DSUB-37 Socket Horizontal P2.77x2.54mm Edge Pin Offset9.40mm.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-37_Socket_Horizontal_P2.77x2.54mm_EdgePinOffset9.40mm.step
Model: DSUB-37_Socket_Horizontal_P2.77x2.54mm_EdgePinOffset9.40mm
