dsub_37_pins_horizontal_p2_77x2_84mm_edgepinoffset14_56mm_housed_mountingholesoffset8_20mm.step

DSUB-37 Pins Horizontal P2.77x2.84mm Edge Pin Offset14.56mm Housed Mounting Holes Offset8.20mm

Skills Contribute

connectord-subexternal-io

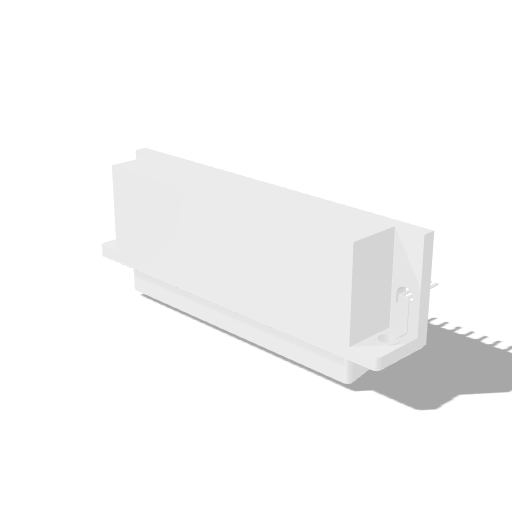

Loading DSUB-37 Pins Horizontal P2.77x2.84mm Edge Pin Offset14.56mm Housed Mounting Holes Offset8.20mm 3D viewer

Summary

Connector D-sub connector footprint model, DSUB-37 Pins Horizontal P2.77x2.84mm Edge Pin Offset14.56mm Housed Mounting Holes Offset8.20mm.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-37_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset14.56mm_Housed_MountingHolesOffset8.20mm.step
Model: DSUB-37_Pins_Horizontal_P2.77x2.84mm_EdgePinOffset14.56mm_Housed_MountingHolesOffset8.20mm
