dsub_15_hd_socket_vertical_p2_29x1_98mm_mountingholes.step

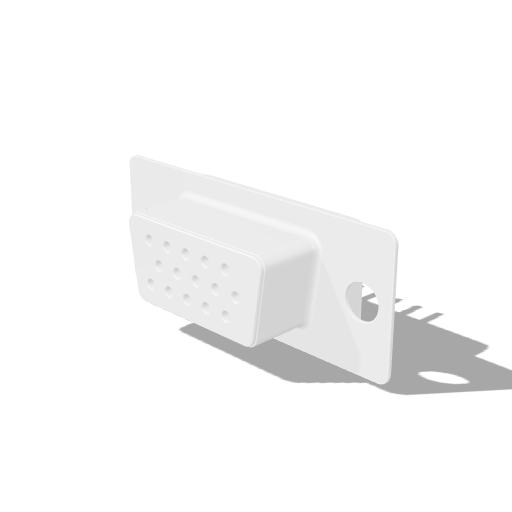

DSUB-15-HD Socket Vertical P2.29x1.98mm Mounting Holes

Skills Contribute

connectord-subexternal-io

Loading DSUB-15-HD Socket Vertical P2.29x1.98mm Mounting Holes 3D viewer

Summary

Connector D-sub connector footprint model, DSUB-15-HD Socket Vertical P2.29x1.98mm Mounting Holes.

Part

Category: electronics
Family: connector-dsub
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Connector_Dsub.3dshapes/DSUB-15-HD_Socket_Vertical_P2.29x1.98mm_MountingHoles.step
Model: DSUB-15-HD_Socket_Vertical_P2.29x1.98mm_MountingHoles
