c_rect_l7_2mm_w3_0mm_p5_00mm_fks2_fkp2_mks2_mkp2.step

C Rect L7.2mm W3.0mm P5.00mm FKS2 FKP2 MKS2 MKP2

Skills Contribute

passivecapacitorthrough-hole

Loading C Rect L7.2mm W3.0mm P5.00mm FKS2 FKP2 MKS2 MKP2 3D viewer

Summary

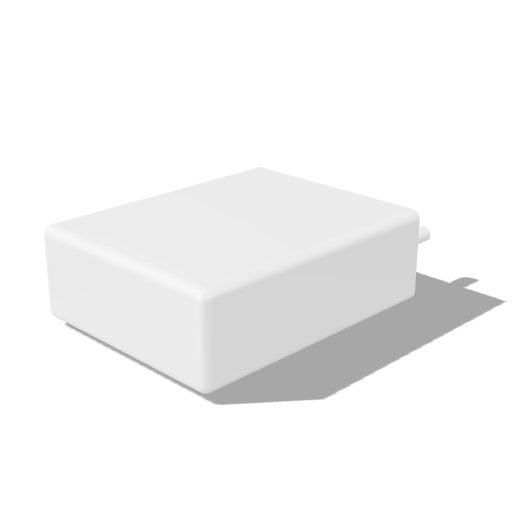

Through-hole capacitor footprint model, C Rect L7.2mm W3.0mm P5.00mm FKS2 FKP2 MKS2 MKP2.

Part

Category: electronics
Family: capacitor-tht
Step Source: https://gitlab.com/kicad/libraries/kicad-packages3D/-/raw/0bc64e922178140eb6890377646efd45e15011bd/Capacitor_THT.3dshapes/C_Rect_L7.2mm_W3.0mm_P5.00mm_FKS2_FKP2_MKS2_MKP2.step
Model: C_Rect_L7.2mm_W3.0mm_P5.00mm_FKS2_FKP2_MKS2_MKP2
Mounting Style: through-hole
Pitch mm: 5
