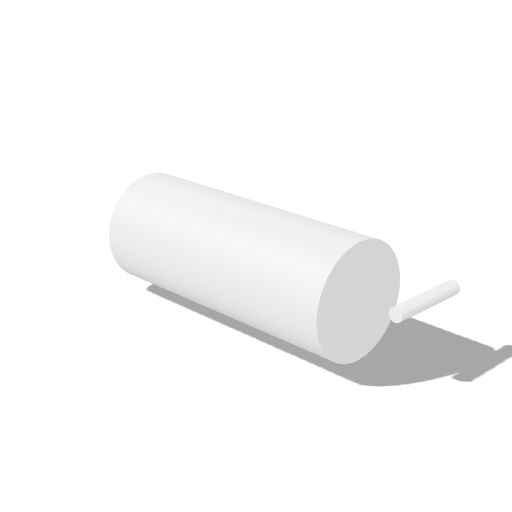

axial_inductor_l10p0_d4p0_p12p70.step

Axial through-hole inductors, L=10.0mm D=4.0mm P=12.70mm

Skills Contribute

passivethrough-hole

Loading Axial through-hole inductors, L=10.0mm D=4.0mm P=12.70mm 3D viewer

Summary

Axial through-hole inductor, L=10.0mm D=4.0mm P=12.70mm.

Part

Category: electronics
Family: through-hole-passive
Geometry Representation: analytic simplified
Passive Kind: Axial through-hole inductors
Dimension DMm: 4
Dimension LMm: 10
Dimension PMm: 12.7
