asme_nylon_insert_locknut_5_16_18_simple.step

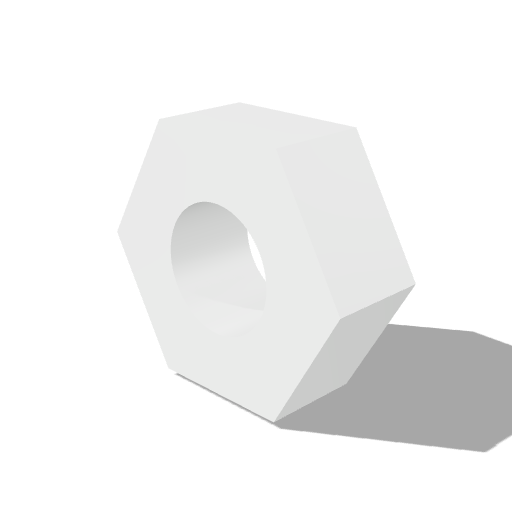

Imperial nylon-insert locknuts, 5/16-18, simplified internal thread

Skills Contribute

nutnyloc

Loading Imperial nylon-insert locknuts, 5/16-18, simplified internal thread 3D viewer

Summary

Imperial nylon-insert locknut, 5/16-18, internal thread.

Part

Category: fastener
Family: asme-nylon-nut
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Major Diameter In: 0.3125
Nut Style: nylon
Thread: 5/16-18
Threads Per Inch: 18
Nominal Size: 5/16-18
