asme_hex_head_cap_screw_n8_32_l0p5in_simple.step

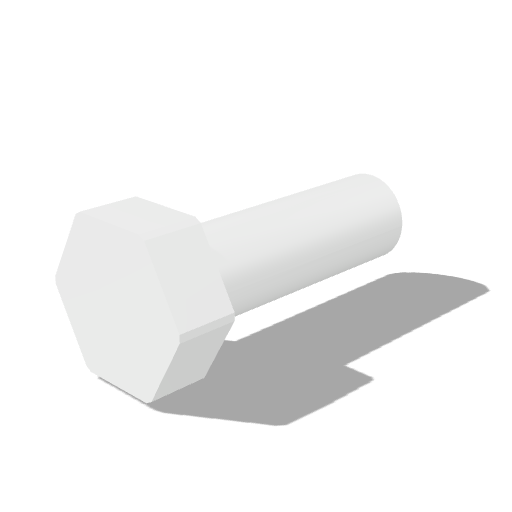

Imperial hex-head cap screws/bolts, #8-32, L=0.5 in, simplified thread

Skills Contribute

screw

Loading Imperial hex-head cap screws/bolts, #8-32, L=0.5 in, simplified thread 3D viewer

Summary

Imperial hex-head cap screw/bolt, #8-32, L=0.5 in.

Part

Category: fastener
Family: asme-hex-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: hex_head
Length In: 0.5
Length mm: 12.7
Major Diameter In: 0.164
Thread: #8-32
Threads Per Inch: 32
Nominal Size: #8-32 x 12.7 mm
