asme_hex_head_cap_screw_n4_40_l0p125in_simple.step

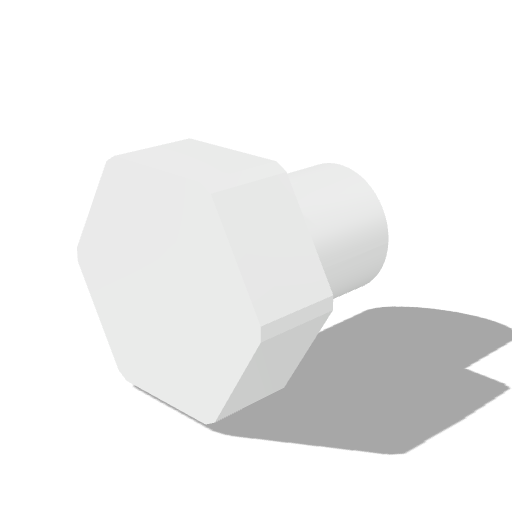

Imperial hex-head cap screws/bolts, #4-40, L=0.125 in, simplified thread

Skills Contribute

screw

Loading Imperial hex-head cap screws/bolts, #4-40, L=0.125 in, simplified thread 3D viewer

Summary

Imperial hex-head cap screw/bolt, #4-40, L=0.125 in.

Part

Category: fastener
Family: asme-hex-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: hex_head
Length In: 0.125
Length mm: 3.175
Major Diameter In: 0.112
Thread: #4-40
Threads Per Inch: 40
Nominal Size: #4-40 x 3.175 mm
