asme_hex_head_cap_screw_1_4_28_l1p0in_simple.step

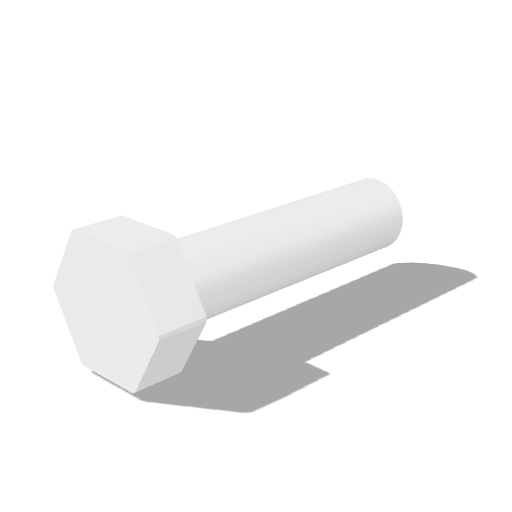

Imperial hex-head cap screws/bolts, 1/4-28, L=1.0 in, simplified thread

Skills Contribute

screw

Loading Imperial hex-head cap screws/bolts, 1/4-28, L=1.0 in, simplified thread 3D viewer

Summary

Imperial hex-head cap screw/bolt, 1/4-28, L=1.0 in.

Part

Category: fastener
Family: asme-hex-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: hex_head
Length In: 1
Length mm: 25.4
Major Diameter In: 0.25
Thread: 1/4-28
Threads Per Inch: 28
Nominal Size: 1/4-28 x 25.4 mm
