asme_flat_head_socket_screw_n8_32_l0p25in_simple.step

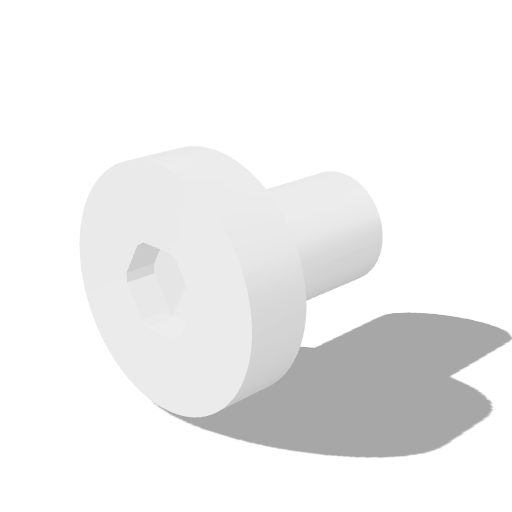

Imperial flat/countersunk socket screws, #8-32, L=0.25 in, simplified thread

Skills Contribute

screwcountersunk

Loading Imperial flat/countersunk socket screws, #8-32, L=0.25 in, simplified thread 3D viewer

Summary

Imperial flat/countersunk socket screw, #8-32, L=0.25 in.

Part

Category: fastener
Family: asme-flat-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: flat_head
Length In: 0.25
Length mm: 6.35
Major Diameter In: 0.164
Thread: #8-32
Threads Per Inch: 32
Nominal Size: #8-32 x 6.35 mm
