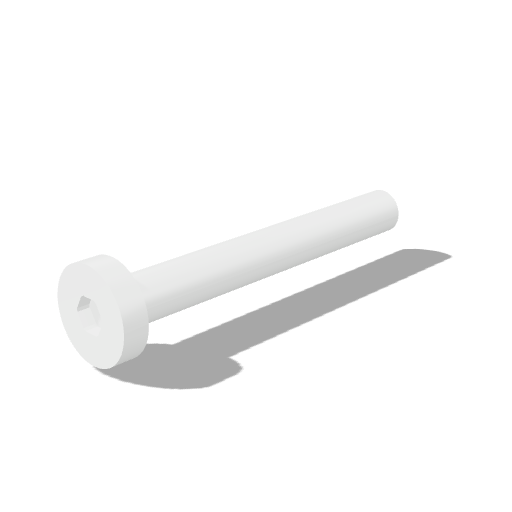

asme_flat_head_socket_screw_n10_24_l1p5in_simple.step

Imperial flat/countersunk socket screws, #10-24, L=1.5 in, simplified thread

Skills Contribute

screwcountersunk

Loading Imperial flat/countersunk socket screws, #10-24, L=1.5 in, simplified thread 3D viewer

Summary

Imperial flat/countersunk socket screw, #10-24, L=1.5 in.

Part

Category: fastener
Family: asme-flat-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: flat_head
Length In: 1.5
Length mm: 38.099999999999994
Major Diameter In: 0.19
Thread: #10-24
Threads Per Inch: 24
Nominal Size: #10-24 x 38.1 mm
