asme_flat_head_socket_screw_n0_80_l0p5in_simple.step

Imperial flat/countersunk socket screws, #0-80, L=0.5 in, simplified thread

Skills Contribute

screwcountersunk

Loading Imperial flat/countersunk socket screws, #0-80, L=0.5 in, simplified thread 3D viewer

Summary

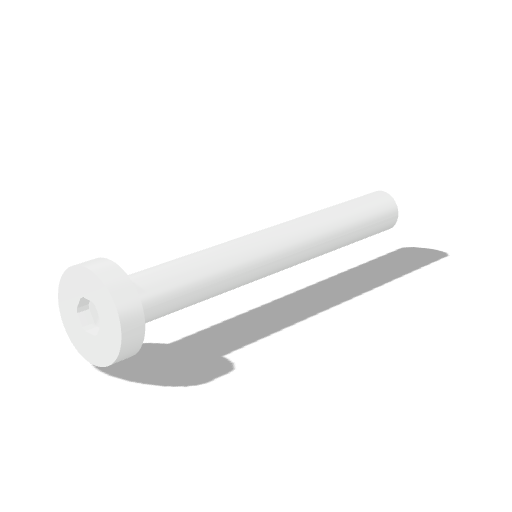

Imperial flat/countersunk socket screw, #0-80, L=0.5 in.

Part

Category: fastener
Family: asme-flat-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: flat_head
Length In: 0.5
Length mm: 12.7
Major Diameter In: 0.06
Thread: #0-80
Threads Per Inch: 80
Nominal Size: #0-80 x 12.7 mm
