asme_flat_head_socket_screw_3_8_16_l2p5in_simple.step

Imperial flat/countersunk socket screws, 3/8-16, L=2.5 in, simplified thread

Skills Contribute

screwcountersunk

Loading Imperial flat/countersunk socket screws, 3/8-16, L=2.5 in, simplified thread 3D viewer

Summary

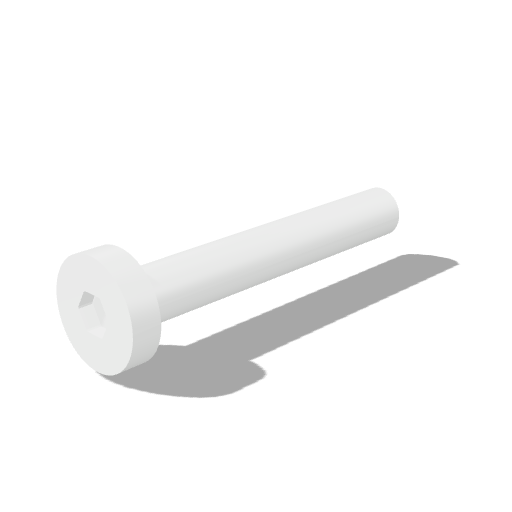

Imperial flat/countersunk socket screw, 3/8-16, L=2.5 in.

Part

Category: fastener
Family: asme-flat-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: flat_head
Length In: 2.5
Length mm: 63.5
Major Diameter In: 0.375
Thread: 3/8-16
Threads Per Inch: 16
Nominal Size: 3/8-16 x 63.5 mm
