asme_flat_head_socket_screw_1_4_20_l0p5in_simple.step

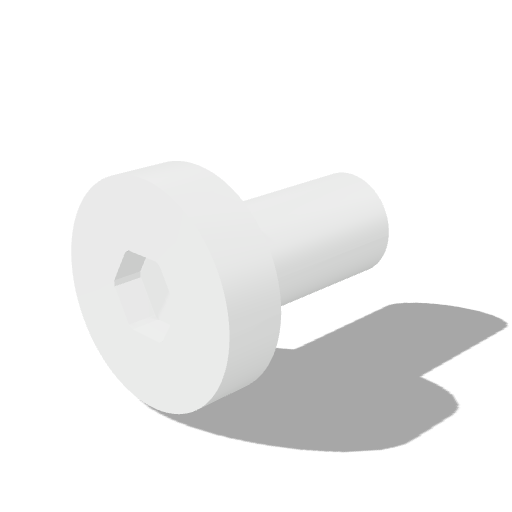

Imperial flat/countersunk socket screws, 1/4-20, L=0.5 in, simplified thread

Skills Contribute

screwcountersunk

Loading Imperial flat/countersunk socket screws, 1/4-20, L=0.5 in, simplified thread 3D viewer

Summary

Imperial flat/countersunk socket screw, 1/4-20, L=0.5 in.

Part

Category: fastener
Family: asme-flat-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: flat_head
Length In: 0.5
Length mm: 12.7
Major Diameter In: 0.25
Thread: 1/4-20
Threads Per Inch: 20
Nominal Size: 1/4-20 x 12.7 mm
