asme_button_head_socket_screw_n6_32_l1p0in_simple.step

Imperial button-head socket screws, #6-32, L=1.0 in, simplified thread

Skills Contribute

screwsocket-headbutton-head

Loading Imperial button-head socket screws, #6-32, L=1.0 in, simplified thread 3D viewer

Summary

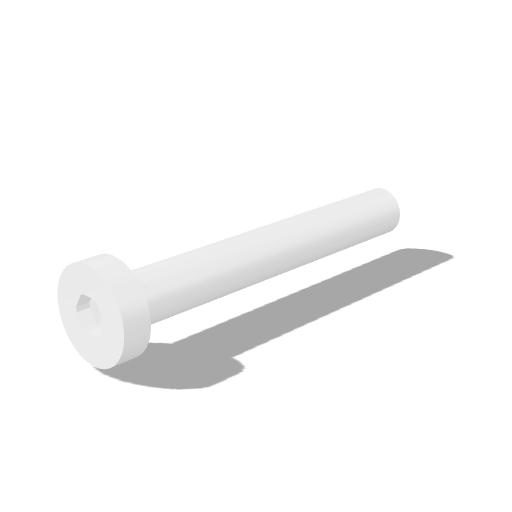

Imperial button-head socket screw, #6-32, L=1.0 in.

Part

Category: fastener
Family: asme-button-head-screw
Standard: ASME B18 generic
Standard Body: ASME
Standard Number: B18
Geometry Representation: analytic simplified
Head Style: button_head
Length In: 1
Length mm: 25.4
Major Diameter In: 0.138
Thread: #6-32
Threads Per Inch: 32
Nominal Size: #6-32 x 25.4 mm
