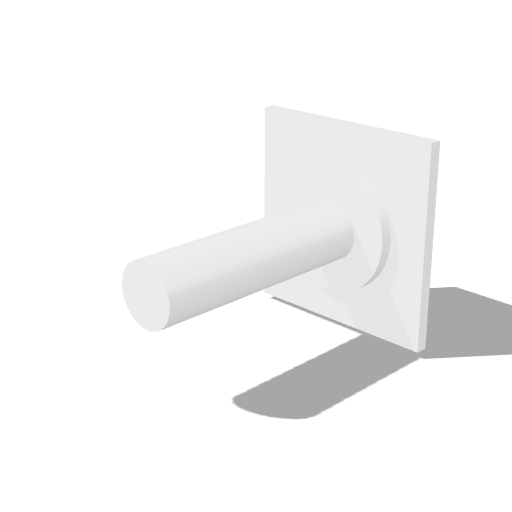

adhesive_backed_pcb_support_m4_h020.step

Board supports and retainers, M4, H=20 mm, adhesive_backed_pcb_support

Skills Contribute

standoff

Loading Board supports and retainers, M4, H=20 mm, adhesive_backed_pcb_support 3D viewer

Summary

Board support/retainer, M4, H=20 mm, adhesive-backed PCB support.

Part

Category: mechanical-hardware
Family: pcb-support
Geometry Representation: analytic simplified
Height mm: 20
Support Kind: adhesive_backed_pcb_support
Thread Or Hole Size: M4
