adafruit_5358_mag_connector_4_pin_right_angle_pins.step

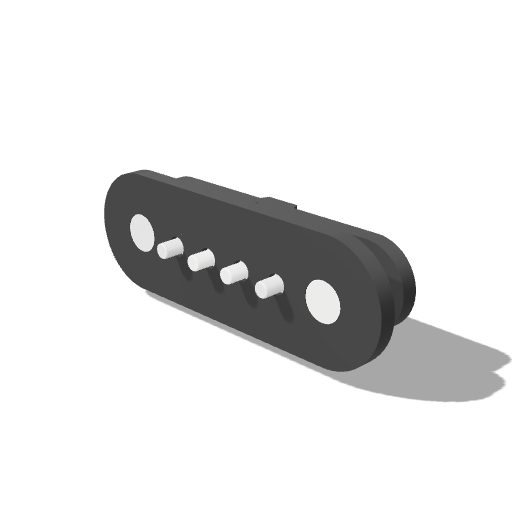

5358 Mag Connector (4-pin, Right Angle, Pins)

Skills Contribute

connector-cableconnector

Loading 5358 Mag Connector (4-pin, Right Angle, Pins) 3D viewer

Summary

Adafruit 5358 Mag Connector (4-pin, Right Angle, Pins).

Part

Category: electronics
Family: adafruit
Product Page: https://www.adafruit.com/product/5358
Step Source: https://raw.githubusercontent.com/adafruit/Adafruit_CAD_Parts/5ead410a8034146307aa99f2ab916bbd2a87114f/5358%20Mag%20Connector%20(4-pin%2C%20Right%20Angle)/5358%20Mag%20Connector%20(4-pin%2C%20Right%20Angle%2C%20Pins).step
Manufacturer: Adafruit
Model: 5358 Mag Connector (4-pin, Right Angle, Pins)
Form Factor: connector-cable
Sku: 5358
